GENERAL DESCRIPTION

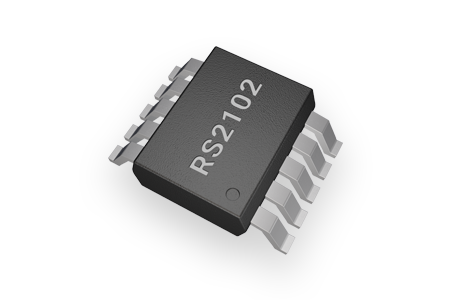

The RS2102 is a dual, low on-resistance, singlepole double-throw (SPDT) analog switch that is designed to operate from1.8 V to 5.5 V.?

The RS2102 device can handle both analog and digital signals. It features fast switching speeds (tON = 29ns, tOFF = 17ns) and low on-resistance (2.4Ω TYP).?

These features make this device suitable for a wide variety of portable applications including cell phones, audio devices, and instrumentation.?

Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-toanalog conversion systems.

FEATURES

? -3dB Bandwidth: 120MHz
? High Speed, Typically 29ns
? Supply Range: +1.8V to +5.5V
? Low ON-State Resistance, 2.4Ω(TYP)
? Break-Before-Make Switching
? Rail-to-Rail Operation
? TTL/CMOS Compatible
? Extended Industrial Temperature? Range: -40°C to +125°C

APPLICATIONS

? Wearable Devices
? Battery-Operated Equipment
? Signal Gating, Chopping, Modulation or? Demodulation (Modem)
? Portable Computing
? Cell Phones

PIN CONFIGURATIONS
